Topic
Mitre saws

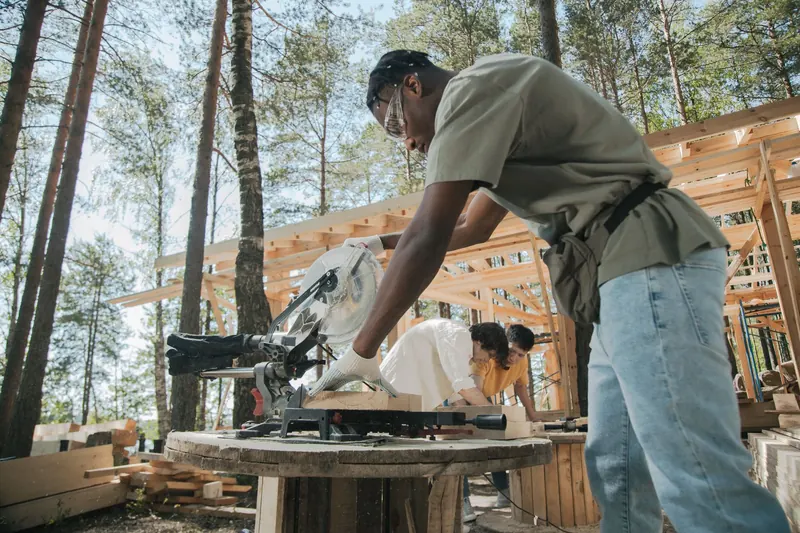

A mitre saw makes clean, repeatable crosscuts at set angles for skirting, architrave, decking and frames. Blade size and a sliding head decide how wide a board it can cut.
- Common blades
- 210 · 216 · 254 · 305 mm
- Cuts
- Mitre · bevel · compound
A mitre is an angled cut across the face of the board; a bevel tilts the blade through the thickness; a compound cut does both, as on coving and some crown mouldings.
A fixed 216 mm saw crosscuts boards up to roughly 120 to 150 mm wide at 90 degrees. A sliding saw with the same blade reaches around 270 to 305 mm, enough for most shelving and wide skirting. Always check the stated cut width and depth in the specification.
A single bevel saw tilts one way; a double bevel tilts both ways, so you do not have to flip long lengths of skirting. Use the mitre angle calculator to turn a frame or a wall corner into the setting on the saw's scale.
Common mistakes
- Assuming every room corner is 90 degrees: measure it and halve the difference from 180.
- Cutting without a test piece when fitting skirting to uneven plaster.
